Heavy Duty Truck - After SN# G22590-00

Need Help Finding Your Serial Number?
Order Instructions
Maintenance and Troubleshooting

Due to the recent increase in raw materials and fuel costs,
all pricing will be confirmed at time of shipment.



Need a New Pallet Truck?

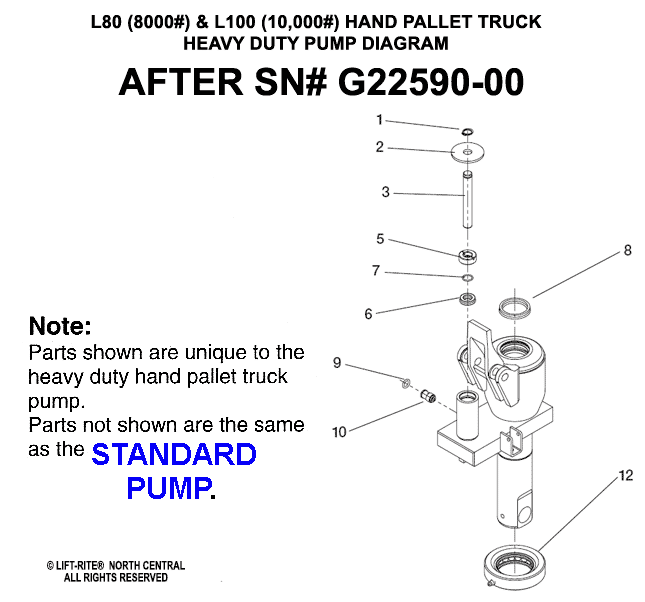

QTYDIAG #DESCRIPTIONPART#PRICE
1-3PUMP PISTON COMPLETE (Items 1-3)PH10250353.16
 5HD CYLINDER NUTPH10277KCALL
 6ENERGIZED SEALPH10252Included in HD Seal Kit
 7O RINGPH10251Included in HD Seal Kit
 8SEALPH10246Included in HD Seal Kit
 9O RINGPH10265Included in HD Seal Kit
 10SLOW RELEASE VALVEPH10262SIncluded in HD Valve Kit
 12HEAVY DUTY THRUST BEARING ASSEMBLYPH10234CALL
 HEAVY DUTY PUMP ASSEMBLYPH20277SN/A
 HEAVY DUTY SEAL KITPH20278100.00
 HEAVY DUTY VALVE KITPH1027942.00
 HEAVY DUTY PUMP REPAIR KITPH20280133.33
Order Instructions
Maintenance and Troubleshooting

QTYDIAG #DESCRIPTIONPART#PRICE
1HANDLE CAPPL20274E7.00
2SPLIT PINPN20269B10.00
3BALLPL10254M5.00
4SPRINGPL20274C-M5.00
5CONTROL LEVERPL30274BD-M33.00
6CONTROL ROD ASSEMBLY
(Includes Rod, Chain, Bolt, Rivets, and Nut)		PL30274ACM104.81
7ADJUSTING NUTPL905715.00
8SPLIT PINPL20274RB5.00
9ROLLER WITH BUSHING (202755)20275522.00
10HANDLE BRACKET ROLLER PINPL20274P7.00
11COMPLETE HANDLE ASSEMBLY (ITEMS 1-10)PL20276-M268.92
12SPLIT PINPL202695.00
15BUSHINGPL203065.00
16HANDLE BRACKET PIVOT PINPL2027519.66
173/4″ CHROME BALLPL102445.00
 18MAIN LIFT PISTONPL20243N/A
 19WIPER RINGPL10245Included in HD Seal Kit
 20ENERGIZED SEALPL10249Included in HD Seal Kit
 21MAIN SEALPL10246Included in HD Seal Kit
22SPLIT PINPL20274S5.00
23OIL FILLER PLUGPL102675.00
 24SEALONPL10259A Included in HD Seal Kit
 25RELEASE PIN SPRINGPL10258Included in HD Valve Kit
 26RELEASE PIN O RINGPL10259Included in HD Seal Kit
 27RELEASE PINPL10260Included in HD Valve Kit
28WASHERPL102395.00
 29STEER WHEEL ASSEMBLIES (8” DIA.)
 STEEL WHEEL ASSEMBLY
(1 Wheel and 2 Bearings)		PL10236SA130.67
 30AXLEPL10240E222.56
31SNAP RINGPL102375.00
33BALL BEARING (Included in Assembly)PL10238D11.00
34SNAP RINGPL102355.00
35THRUST PLATE WASHERPL10234A15.00
36THRUST BEARINGPL1023416.39
37WELD COLLAR WITH GREASE FITTINGPL2023352.24
38SPLIT PINPL202425.00
40RELEASE LEVERPL1026816.72
 4111/32″ CHROME BALLPL10261AIncluded in HD Valve Kit
 42SPLIT PINPL10263Included in HD Valve Kit
 43PLUG BOLT SPRINGPL10264Included in HD Valve Kit
 44O RINGPH10256Included in Seal Kit
 45BALL VALVEPL10262Included in HD Valve Kit
 46PLUG BOLT O RINGPL10265Included in HD Seal Kit
 47PLUG BOLTPL10266 Included in HD Valve Kit
 485/16″ CHROME BALLPL10261Included in HD Valve Kit
 49REAR PISTON ENERGIZED SEALPL10252Included in HD Seal Kit
 50REAR PISTON WIPER RINGPL10251Included in HD Seal Kit
51HANDLE RETURN SPRINGPL2025315.00
52-54PUMP PISTON COMPLETEPL1025032.00
Order Instructions
Maintenance and Troubleshooting

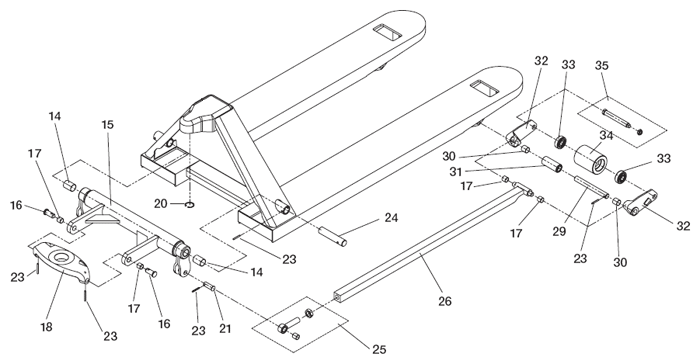

QTYDIAG #DESCRIPTIONPART#PRICE
14BUSHINGPL20203A5.00
 15TORSION BAR – 8000#
     20- 1/2″ WIDE TRUCKPH20201CALL
     27″ WIDE TRUCKPH20202CALL
  TORSION BAR – 10000#
     20- 1/2″ WIDE TRUCKPX20201N/A
     CRANK WELDMENT 27 IN WIDE HPPX20202CALL
16THRUST PLATE SHOULDER PINPL3020715.80
17BUSHINGPL202065.00
18THRUST PLATEPL3023165.19
20SNAP RINGPL202325.00
21EYE BOLT PINPL2022711.00
23SPLIT PINPL202695.00
24BULKHEAD EYE PINPL2020436.96
25EYE BOLT (Includes Nut and Bushing)PH2022611.00
 26PUSHROD – 8000#
    48″ FORKSPH20224-48121.84
    42″ FORKSPH20224-42163.41
  PUSHROD – 10000#
     48″ FORKSPX20224-48298.25
29HD FORK PINPH2021913.00
30BUSHINGPL202035.00
31EXIT ROLLER WITH BUSHINGSPL2022015.00
32LEVER ARM ASSEMBLY WITH BUSHINGS 8000#PL2021286.74
 LEVER ARM ASSEMBLY WITH BUSHINGS 10000#PH20212138.68
33BALL BEARINGPL202147.70
 34LOAD ROLLER ASSEMBLIES (3″DIA.)
 STEEL ROLLER WITH BEARINGSPL20210SA55.64
 AXLE (Includes Nut)PL2021513.00
